Laser Men Design Metal Sheet And Tube Cutting Fiber Laser Cut Machine

Brand Name : bcx

Model Number : bcx—0011

Certification : ce

Place of Origin : China

MOQ : 1

Price : 1500US dollars

Payment Terms : T/T

Supply Ability : 99

Delivery Time : 8

Packaging Details : specialized shatterproof packing

Contact Now

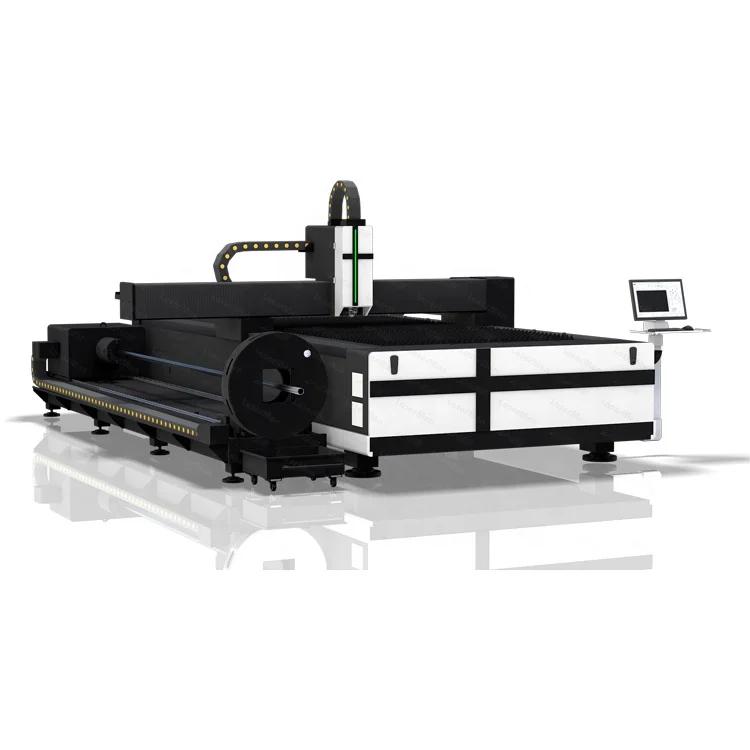

Laser Men Design Metal Sheet And Tube Cutting Fiber Laser Cut Machine

Machine models	1530ET sheet and pipe cutting laser machine with exchange table
Working area	1500x3000mm (5 x 10 feet )
Laser type	Fiber laser, wavelength 1080nm
JPT, Yongli, IPG, RaycusLaser source brand	JPT (optional:Yongli, IPG, Raycus)
Laser power	1000W/1500W/2000W
Cooling mode	Pure circulating water cooling
Control system	DSP offline control system, FSCUT controller (optional: au3tech)
Max. speed	90m/min
Repeat Positioning Accuracy	0.02 mm
Working voltage	3-Phase 340~420V
Working condition	Temperature: 0-40℃, humidity: 5%-95% (No condensation)
File formats	.plt, .dst, .dxf, .dwg, *.ai, support AutoCAD, CoreDraw software
Machine Structure	Net weight : 4000KGS

Machine Features

Professional laser cutting control system has the advantages of precise, stable, easy to use (able to layout graphics and pierce
 fast).

Gear rack transmission, double servo motors and drivers in Y, with accelerated speed up to 0.8G, ensures machine high speed as we as high precision.

High rigidity heavy machine body, minimizes the vibration during high speed cutting.

Adopt top brand fiber laser source, excellent laser beam, stable laser output, and precise cutting.

Use Taiwan rails, with higher precision and longer service time.

1530 sheet and pipe cutting laser machine can cut 1500*3000 mm working area sheet metal and metal pipe. (Round and square pipes up to 6 meters in length and 220 mm in diameter).

Detailed Image

Auto focusing laser cutting head

The cutting head focal length adjustment precision is 0.01mm. Laser is invisible, there is red dot showing laser spot position on material. 1000W / 1500W / 2000W fiber laser source.

Famous brand fibe laser source with JPT 1000w-6000w. (optional: Yongli, IPG, Raycus)

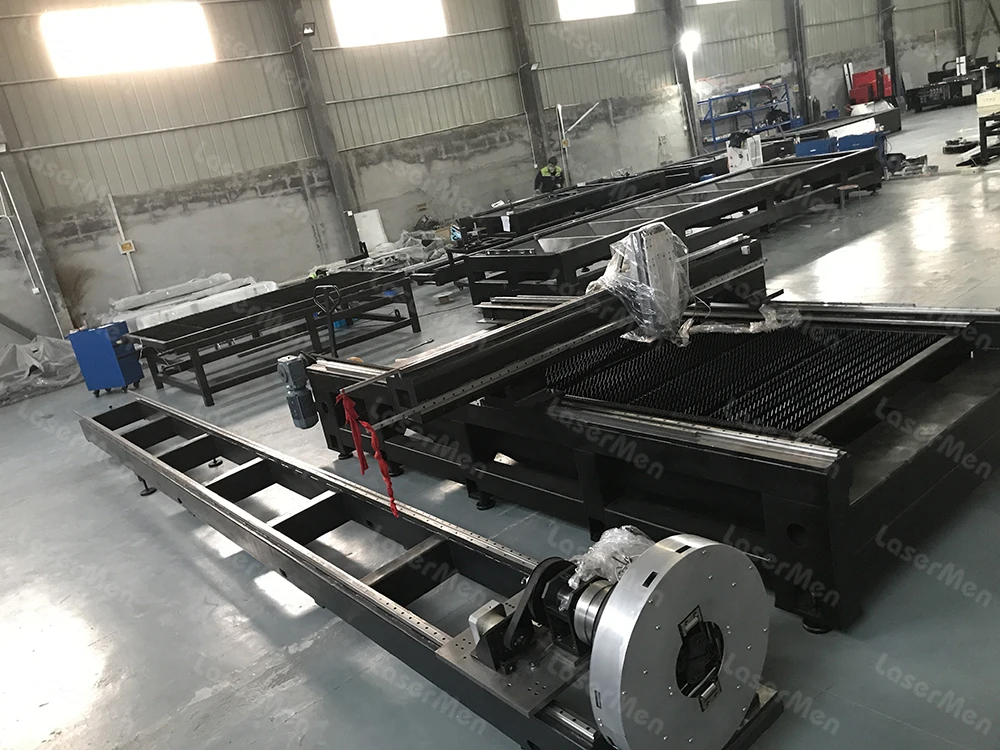

Metal tube and sheet fiber laser cutting machine bed

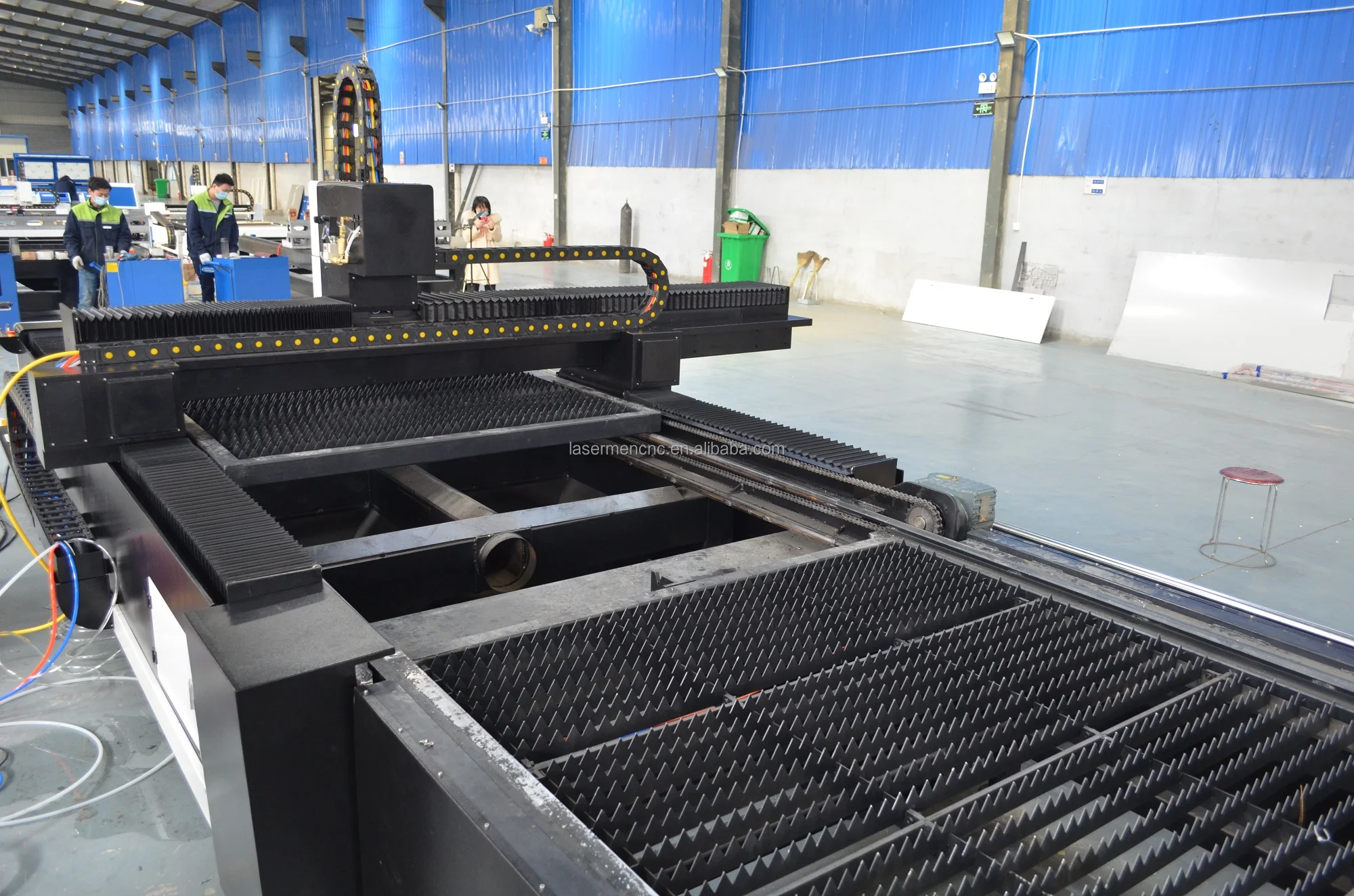

Machine table with rolling balls

Saw-shape machine table holds metal sheets steady with little touch with metal sheet. The saws are thick and durable. In front and both sides of machine table, there are rolling balls for assisting sheets loading.

Rotary with 220mm diameter and 6000mm length

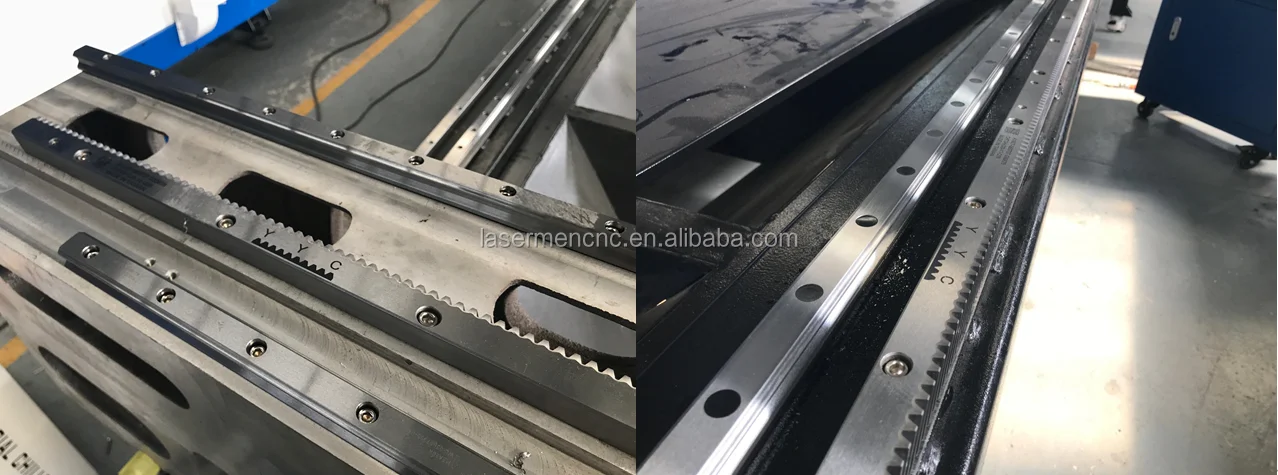

Transmission system

Machine is with gear rack and linear rail transmission, which ensures machine high speed movement, precision and stability as well. 2 gear racks and 2 rails (25mm width) in Y; 1 gear rack and 2 rails (20mm width) in X. The transmission system is protected by dust shields.

S&A brand Industrial water chiller

S&A brand industrial water chiller can be able to cool the fiber laser source and optic lenses at the same time, S&A industrial water chiller is popular for its 2 temperature control modes as constant temperature and intelligent temperature control. Under intelligent mode, the water temperature is adjusted according to ambient temperature. Customers no longer need to worry about the water temperature adjustment of seasonal changes.

Auto lubrication

Pressing the handle above the oil box, it automatically lubricate guide rails, which ensures the machine keep moving smoothly and make the machine cutting with high precision.

Gas assist valves

Gas assists cutting either in cutting speed, cutting thickness or cutting effect. For example, oxygen helps to cut faster and thicker; nitrogen helps to get brighter cutting edge. The solenoid valve controls the gas blowing. Gas blows only during cutting, which saves your gas cost. SMC proportional valve controls the gas pressure and brings good cutting all the time, for example, gas pressure is lowered when cutting corners.

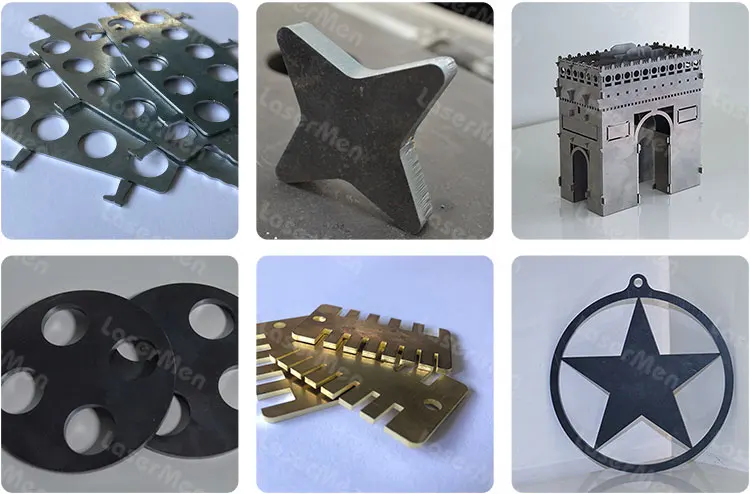

Samples

Applicable Materials
 Carbon steel, stainless steel, alloy steel, spring steel and copper, aluminum, gold,silver and titanium sheets and pipes.

 Application Area
 Machinery parts electrics, sheet metal fabrication, electrical cabinet, kitchenware, elevator panel, hardware tools, metal
 enclosure, advertising sign letters, lighting lamps, metal crafts, decoration, jewelry, medical instruments, automotive parts and other metal cutting fields.
